| Technical data |
50 CM |
| Frequency range (GHz) |
10.00-13.00 |
| Sheet dimension (cm) |
51x55 |
| Reflecting dimension (cm) |
49x52 |
| Illumination efficiency*(%) |
67 |
| Gain*@10.70GHz (dB) |
30.70 |
| Gain*@11.70GHz (dB) |
31.50 |
| Gain*@12.75GHz (dB) |
32.20 |
| Cross polarization*on axis (dBc) |
-22 |
| First side lobe level*(dBc)First side lobe level*(dBc) |
-20 |
| Noise temp.*@12GHz, 36° elevation (K) |
62 |
| F/D radio |
0.66 |
| 3dB Beam width*@12GHz |
4.3° |
| Offset pointing angle |
21° |
| Feed illumination angle |
70° |
| Feeder clamp(mm) |
40/23 |
| Elevation angle |
15° -45° |

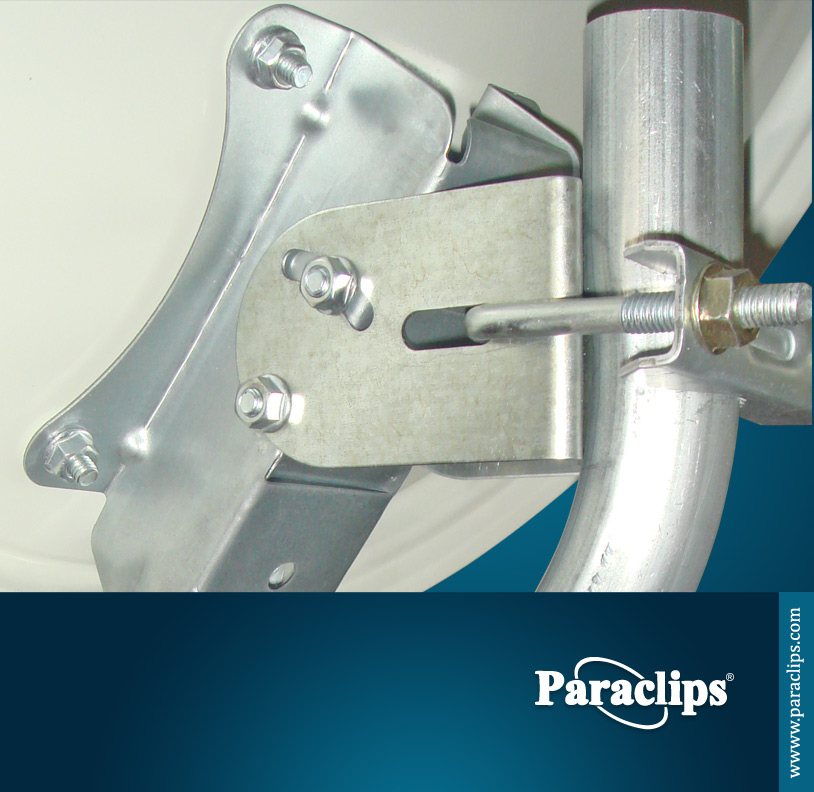

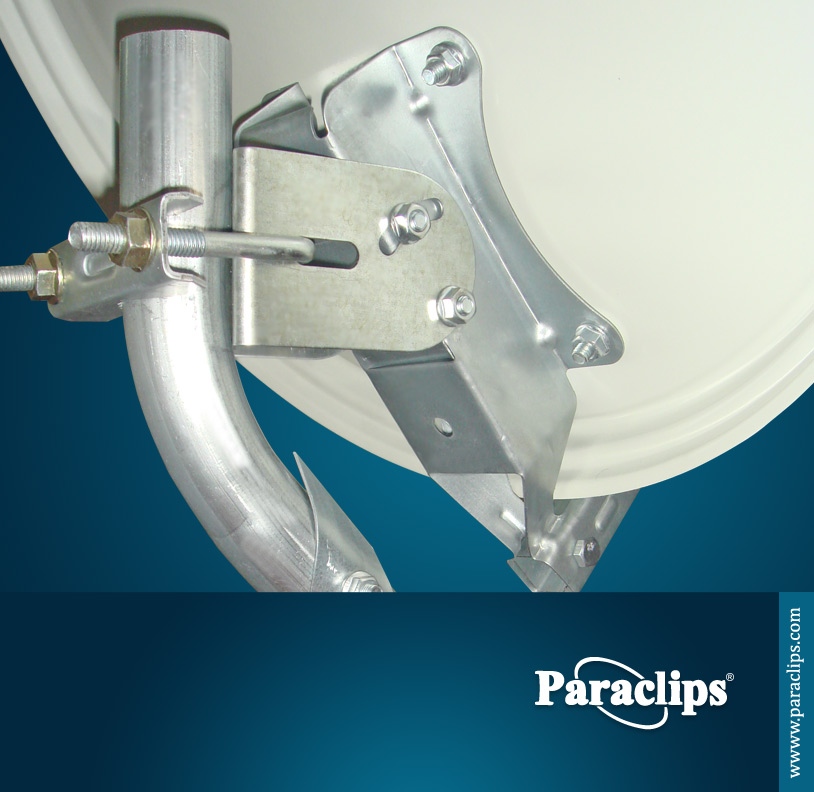

| Mast clamp |
20-50 |
| Alu reflector thickness (mm) |
1.0 |
| Steel reflector thickness (mm) |
N/A |
| Wind load@120km/h (kg) [worst-case] |
15.3 |
| Working temperature |
-30° /+70° |
| Humidity |
0-100% |
