| Technical data |
60 CM |
| Frequency range (GHz) |
10.00-13.00 |
| Sheet dimension (cm) |
63x68 |
| Reflecting dimension (cm) |
60x65 |
| Illumination efficiency*(%) |
69 |
| Gain*@10.70GHz (dB) |
34.40 |
| Gain*@11.70GHz (dB) |
35.15 |
| Gain*@12.75GHz (dB) |
35.90 |
| Cross polarization*on axis (dBc) |
-23.5 |
| First side lobe level*(dBc)First side lobe level*(dBc) |
-21 |
| Noise temp.*@12GHz, 36° elevation (K) |
51.3 |
| F/D radio |
0.66 |
| 3dB Beam width*@12GHz |
2.8° |
| Offset pointing angle |
21° |
| Feed illumination angle |
70° |
| Feeder clamp(mm) |
40/23 |

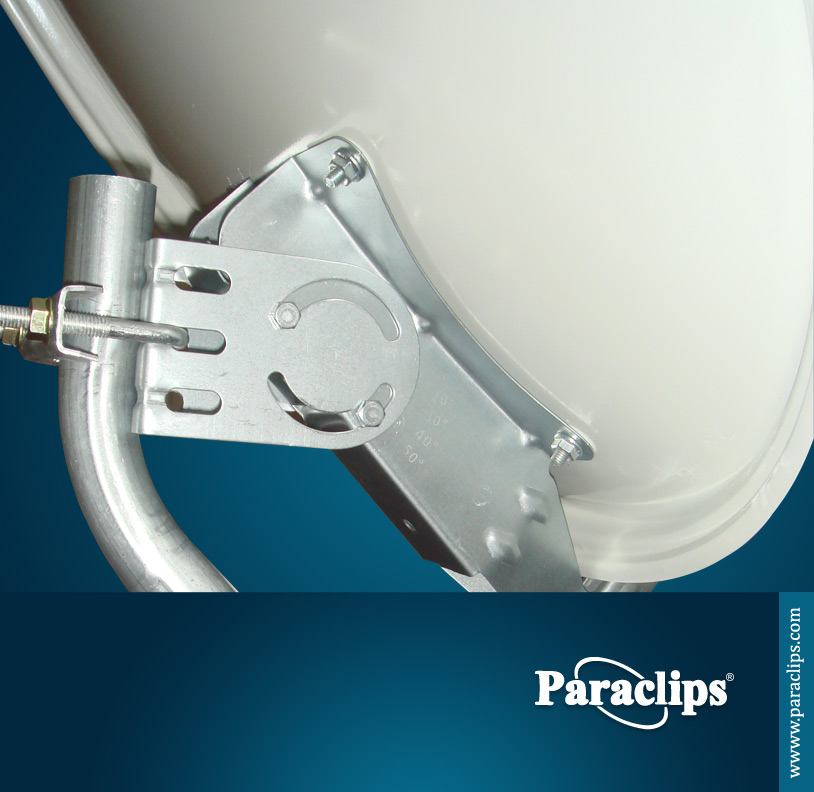

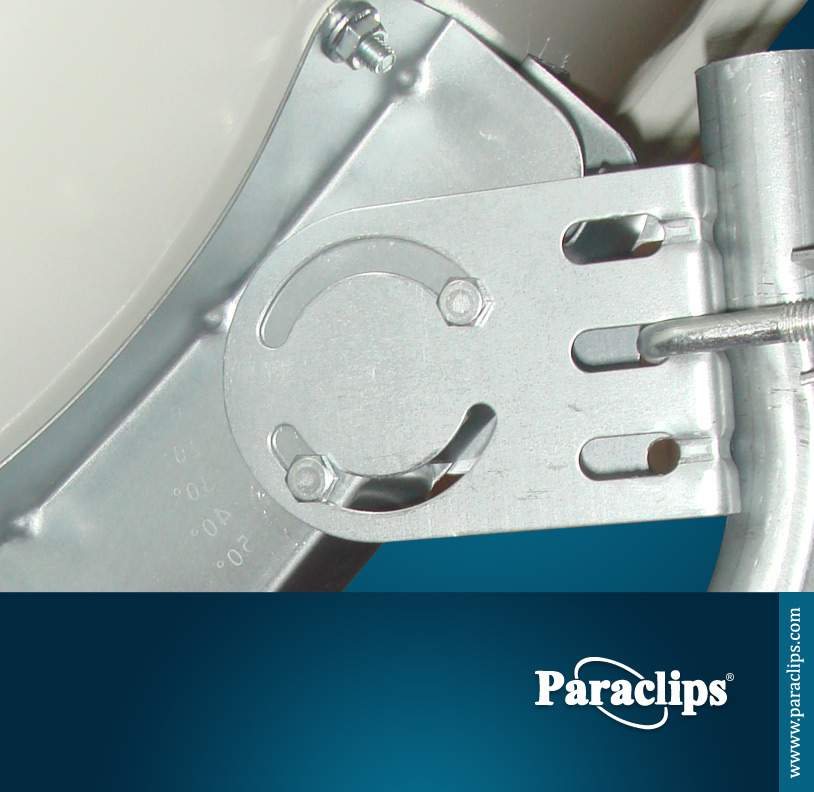

| Elevation angle |
0° -90° |
| Mast clamp |
20-50 |
| Alu reflector thickness (mm) |
N/A |
| Steel reflector thickness (mm) |
0.6 |
| Wind load@120km/h (kg) [worst-case] |
36 |
| Working temperature |
-30° /+70° |
| Humidity |
0-100% |
