Technical data |
75 CM |
Frequency range (GHz) |
10.00-13.00 |
Sheet dimension (cm) |
75x80 |
Reflecting dimension (cm) |
72x77 |
Illumination efficiency*(%) |
69 |
Gain*@10.70GHz (dB) |
36.54 |
Gain*@11.70GHz (dB) |
37.32 |
Gain*@12.75GHz (dB) |
38.10 |
Cross polarization*on axis (dBc) |
-26 |
First side lobe level*(dBc)First side lobe level*(dBc) |
-24 |
Noise temp.*@12GHz, 36° elevation (K) |
43.5 |
F/D radio |
0.66 |
3dB Beam width*@12GHz |
2.2° |
Offset pointing angle |
21° |
Feed illumination angle |
70° |
Feeder clamp(mm) |
40/23 |
Elevation angle |
0° -90° |

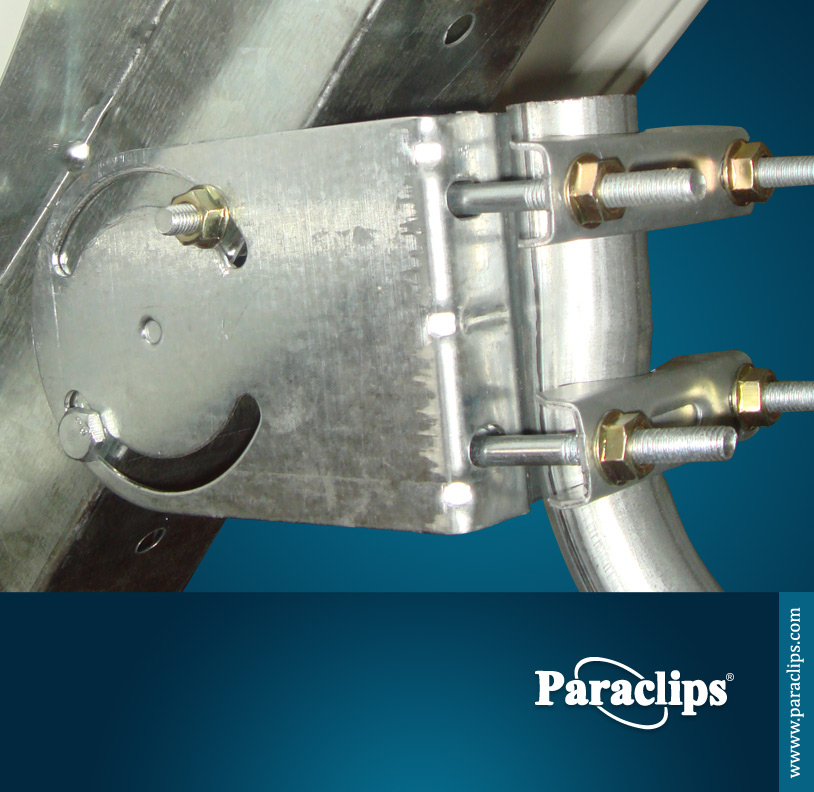

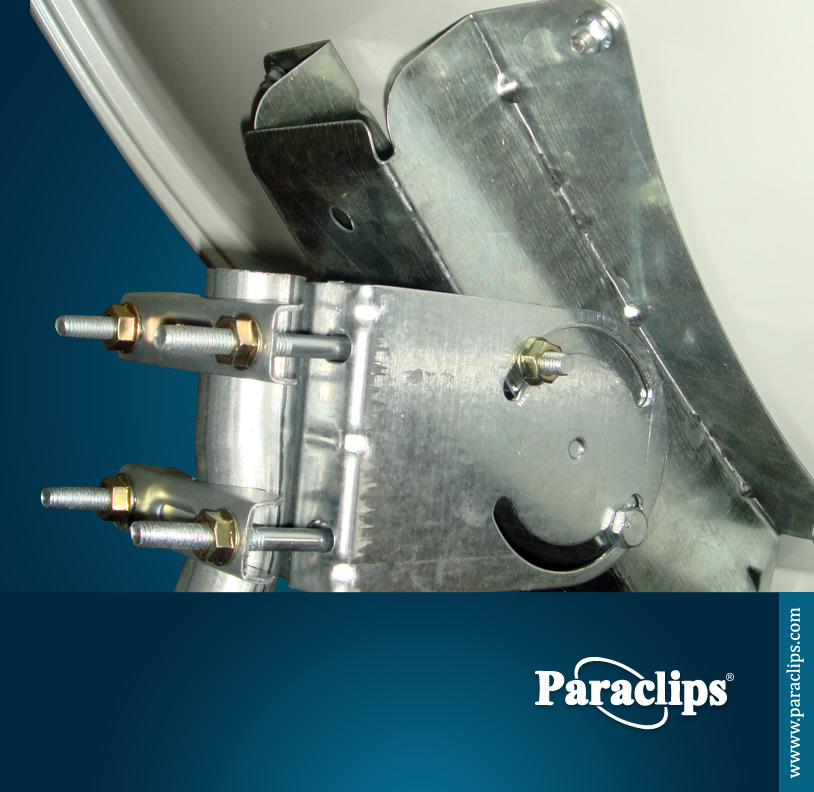

Mast clamp |
20-50 |
Alu reflector thickness (mm) |
1.0 |
Steel reflector thickness (mm) |
0.7 |
Wind load@120km/h (kg) [worst-case] |
58 |
Working temperature |
-30° /+70° |
Humidity |
0-100% |
